Parametric Patterns X: Recursion

2011-02-15_2303

We at Buildz are very happy to welcome Steven Register for today’s lesson in recursion. I had given up on this pattern thinking that it was unattainable without the API. However, Steven opened my eyes and hopefully now he can open yours too. -Zach

[I've added another post on Recursion here.]

Recursion

“Create a pattern by recursively replicating a motif.”


The original intent of this series was to address the parametric patterns Revit could accomplish without coding. Recursion is one of those patterns, though, that I initially thought could only be done through Revit’s API. Though the API is probably the best route to take to do recursion, I still wondered if it could be done without it.
So my thoughts were like this:
· From my coding side I know that recursion means to have a piece of code call itself a certain number of times.
· Could a piece of Revit geometry “call” itself?
· Hmmm…
· From the old AutoCAD days I remember having problems with circular xrefs “calling” themselves.
· Eureka! Nesting!
· Recursion has depth and so does nesting! They are basically the same concept. Yes!
· Wait… will Revit have the same kinds of circular reference issues? Let me test.


Well, through my testing, I found a way to get Revit to do circular referencing without errors (although regeneration can be slow, so the API route is probably better).

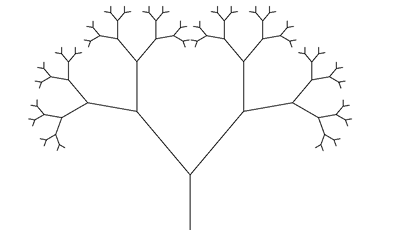

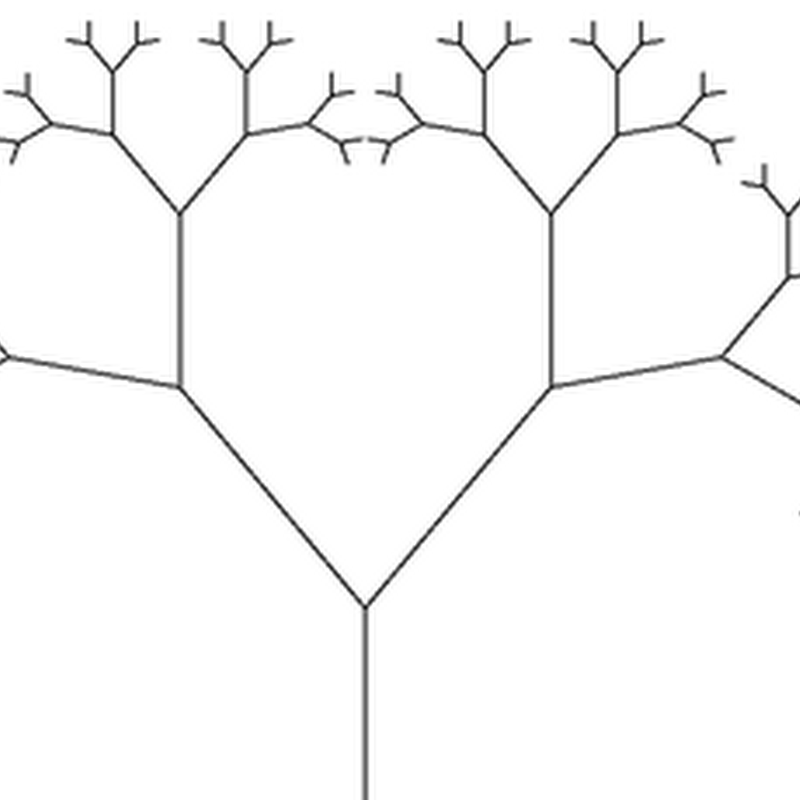

So below is a video based on the dendritic/tree example from Woodbury’s site, but doing it in 3D in Revit (and without the coding from that example). The basic idea is to have 2 identical families with different names that get loaded into each other over and over again. The family in this video does require a small bit of trigonometry and Revit formulas to get the geometry the way I want, but you can do simpler geometry with no formulas for your own families and still use the nesting method that is demonstrated.


Recursion Part 1: Creating the Family

Recursion Part 2: Nesting the Family

So the summarized family recipe from the video is:
· Make one family (make sure it is not Shared) with some parameters, and then save as to make another (with a different name) with the same parameters.
· Then load the 2nd into the 1st, position it, and map the parameters of the nested family to the host.
· Save then load the 1st into the 2nd, position it, and map the parameters of the nested family to the host.
· Then just keep alternately saving and loading them into each other to get the recursion depth you want.
