I’m fascinated by Shigeru Ban’s Nine Bridge Club house.  The projection of the a rectangular grid down into these funnel shapes is such a simple idea on a large scale and totally mind bending in the details.

ninebridges2011-04-02_2255

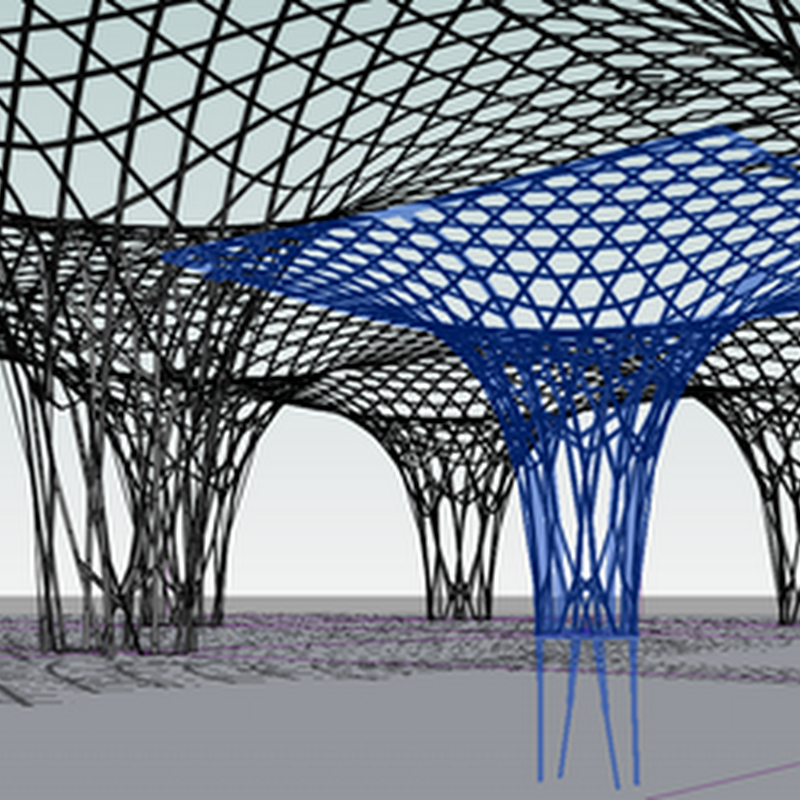

For my sketch, I made a quarter of one funnel with a revolve, cut it down to a square edge, divided the surface, then turned off the U and V grids, and used intersects projected from Level 1.

2011-04-02_23032011-04-02_2310

2011-04-02_23062011-04-02_2309

2011-04-02_2236

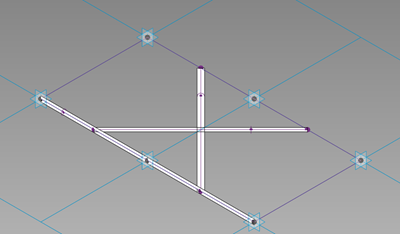

The panel is just a half step pattern with this geometry.

2011-04-02_2233_0012011-04-02_22332011-04-02_22322011-04-02_2227

Plenty of flaws in the lattice (intersect based gridlines can get a little funky at the edges, particularly in tangency conditions) but it’s getting there.
