20120516

Paper Models

2012-05-15_2143

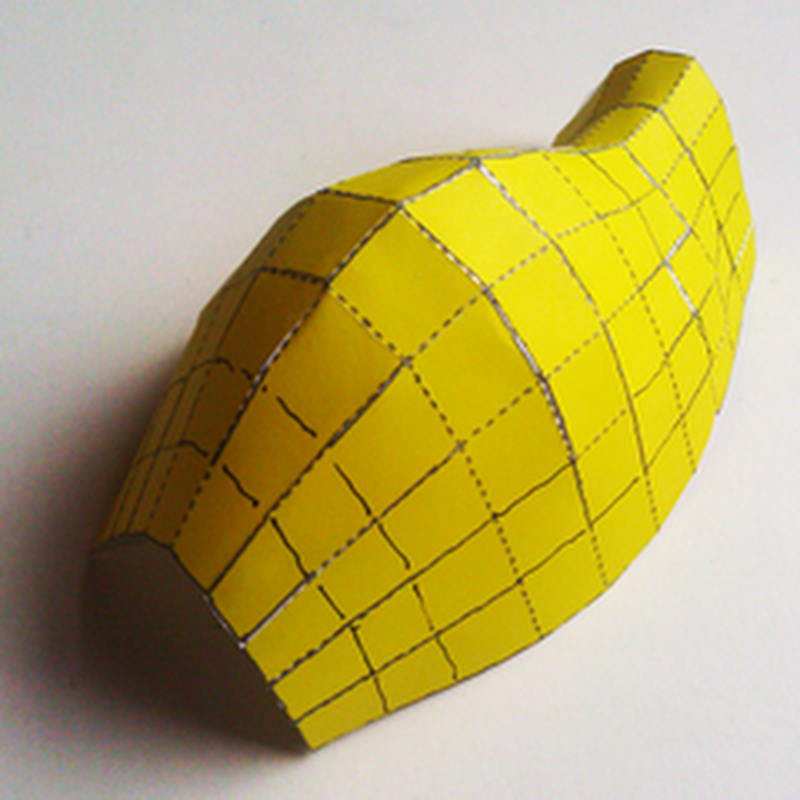

Hey look!  Real stuff!

2012-05-15_2051

Made from fake stuff!

2012-05-15_2007

User Question:  Can Revit/Vasari unfold my geometry so that I can make a paper study model?

I get this question all the time and the answer is a resounding “No!  Tough beans!”

However, I do have a simple formula for solving this problem:

Revit Panels + Pepakura = Awesome

Pepakura is a hobby papercraft software that unfolds and tabs your 3d data.  Just import any compatible file (obj, dxf, mqo, 3ds, lwo, stl, kml, kmz, dae) hit the “unfold” button and hope for the best.  They have a free download that allows you to experiment pretty heavily before deciding to invest the $38 for a fully registered product (that can save and export files).

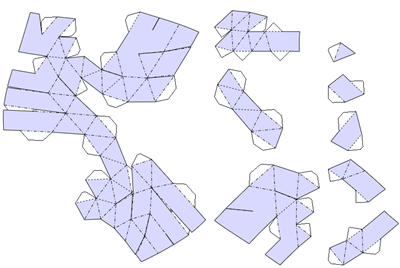

With the above model I had some trial and error getting to this relatively simple unfold2012-04-10_2136

This afternoon I got out my glue and scissors and assembled it in about 15 minutes:

IMG_20120515_132908IMG_20120515_140258

IMG_20120515_142022

I am sure that you, dear reader, with your patience and exacto knife, can do better.

However, before exporting your form, you need to do some prep. 2012-05-15_2041

If you just export the full smooth model to stl (Vasari has a built in stl export) and unfold, it is just a mess of hairy triangles.  STL is a triangulated mesh format, and will tessellate the hell out of your model.

2012-05-15_2132

2012-05-15_2024_001

However after panelizing with a simple rectangular panel, you get this from an STL.

2012-05-15_2101

A couple of things to note on this.  My form is a scale translation surface, which means it can be panelized entirely with planar quadrilaterals. If I just panelized any old freeform surface, I would be exporting lots and lots of doubly curved surfaces, which means lots of triangles for an stl file.

So a slight tweak of this scale translation surface from this 2012-05-15_2050

where my lofted profiles are parallel

2012-05-15_2154

To this,

2012-05-15_2051

where my profiles follow the path.

2012-05-15_2153

This small change will result in non-planar faces. In Pepakura your unfold will be like this:

2012-05-15_2058

WTF?  Well, each one of these little panels from your model is in fact a crazy mess of triangles trying to cover your doubly curved panel surface.

2012-05-15_2135 Frankly, it’s a wonder that Pepakura makes as much sense of it as it does. This is also a pretty good predictor of the chaos that trying to actually build this form will cause with your contractor, owner, finances, and sanity.  Scale Translation is your friend, trust me.

An alternative is to panelize in Vasari with triangles.  Triangles, the always capable, generalizable, cover-any-surface–planar solution, can be controlled by adjusting the divided surface resolution to your taste, then exported.

2012-05-15_2115

2012-05-15_2116

I’m sure that there are other, more professional options for this.  However, to do this exercise I spent a grand total of  $0 (Vasari at $0.00 per seat, and Pepakura trial at a similar figure).  If it works for you, splurge for the $38 registration fee.
