Parametric Patterns V: Transformer

Transformer:

“Change an object's form by translating and/or rotating its rigid components.”

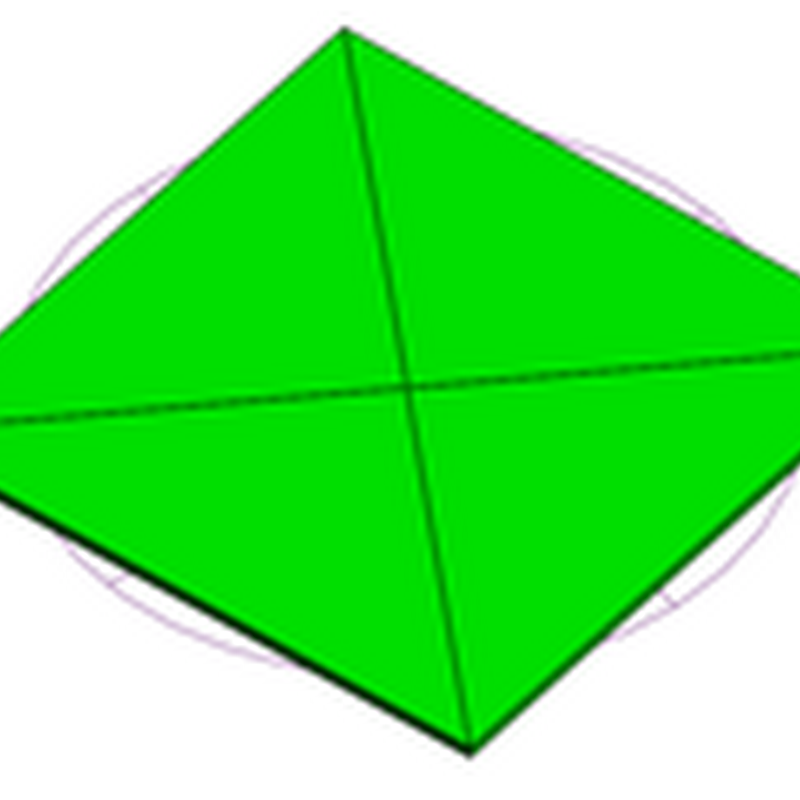

Square Shutter

“Use polygons with right angles as a shutter.”

2010-12-21_16322010-12-21_1631_003

2010-12-21_1631_0022010-12-21_1631_0012010-12-21_1631

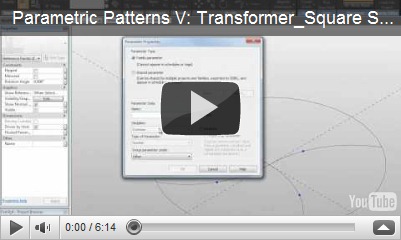

Square Shutter
Scissor Arm

“Model a scissor mechanism, that is, an arm whose horizontal extension is controlled by its handle's vertical movement along a line.”

scissorHosted4scissorHosted3scissorHosted2scissorHosted1

There is probably an easier way, and I think it could just involve using regular family lines and parameters with some trig, but I‘ve shown it here with a bunch of nested adaptive components using a drafting mentality.

How to make the scissor
Scissor flexing. Soundtrack by Cimota God.

Download the rfa files from here

[Edit:  Here’s is an alternate/improved method supplied by Aristide Little-Lex]

Comments

  1. Zach, once again these are great. It's really exciting seeing the CDE being used in for these advanced ideas.

    I remember seeing this done in GC back at the Smart Geometry in Waterloo Canada at least 5 years ago and spending at least a day trying to get Revit 5 to do the same thing. Many of these things were being thought about when we designed the Conceptual Design Environment!

    But now you have to make a printable version, like this :) : http://www.thingiverse.com/thing:4458
