That ain’t normal! Diagnosing point behavior

on

2011-03-09_1958

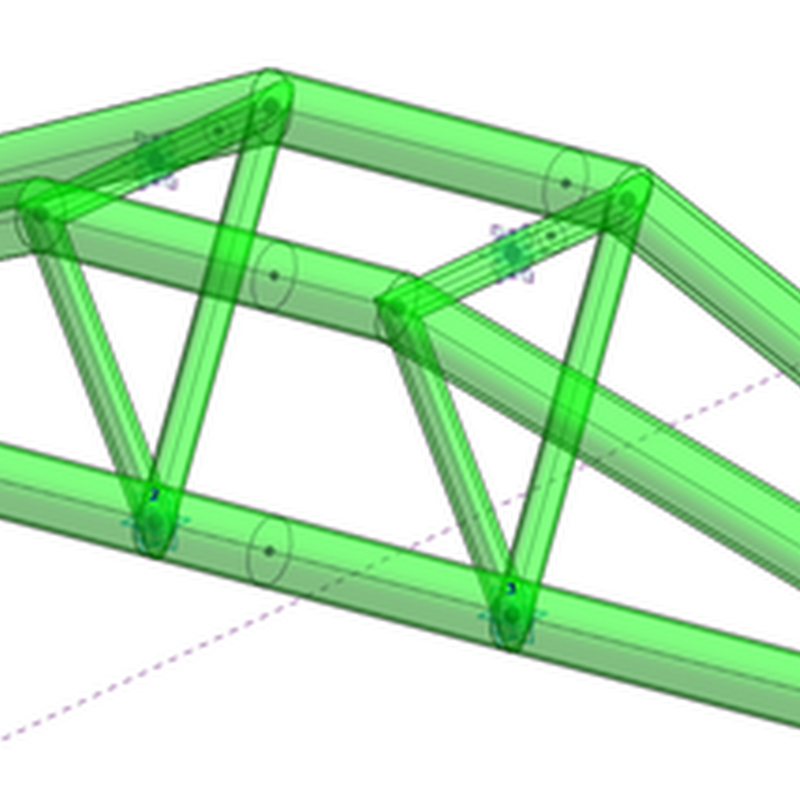

You just finished making this lovely Adaptive Component, a robust triangulated truss, standing up in a proud structural posture:

2011-03-09_1952

you continue placing it in a host file and <sad trombone>, “flop” . . .  it does THIS!

2011-03-09_2002

OR THIS!

2011-03-09_1954

OR, OR, OR . . .  THIS!!!

2011-03-09_1955

WTF!!!

Indeed.  I am regularly baffled by AC behavior, BUT I will testify that on inspection it is almost always doing something aggressively logical.  To figure out what that logic is I made this little diagnostic tool to interrogate normals and local coordinates for adaptive points placed on different surfaces.

2011-03-09_2007

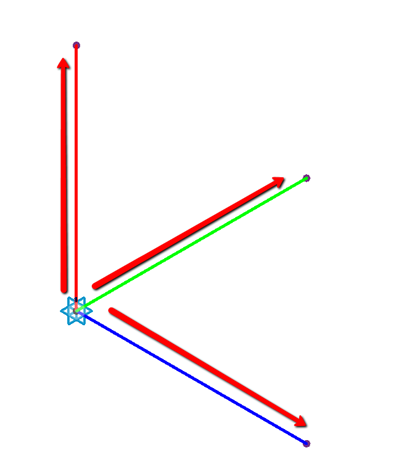

The construction is 3 points, each hosted on one of the 3 workplanes of an adaptive point, offset, and connected by a different colored line.

2011-03-09_2007_001

Relatively simple, but when loaded into a host it illustrates behaviors that are usually invisible, or baffling, or both.

For instance, look at what it shows for different hosting behavior on this single surface.

2011-03-09_2024

A freaking mess, right?  Remember, red was “up” in the Adaptive Component family.  Again, you may say, WTF. In this video I will try and show some of what I understand to be normal “normal” behaviors on points, nodes, surfaces, edges, solids, and workplanes in Revit and Vasari.

Diagnosing Point Behavior Part 1

So now that we have an understanding of how normals behave in any particular hosting condition, let’s look at our truss to understand the behavior.

Diagnosing Point Behavior Part 2

Download the diagnostic tools and sample family shown in the video.

So, now that you understand why the truss DOESN’T work, you might want to know how you would make it work.  This is another post entirely, and until I can get around to it, let me point you to Robert Manna and my Paneling and adaptive component class that we taught at Autodesk University 2010.  This class covers some of the same territory, but is more focused on solutions.  There is a step by step walk through making a more tightly controlled truss-like element on pages 21 to 28 of the handout, and datasets that accompany the documentation.
